EVB-Level Sensor

EVB Level — Smart Leveling Sensor

Level it. Monitor it. Protect it.

a. PRECISION DIGITAL LEVELING (FRONT-TO-BACK + SIDE-TO-SIDE)
The EVB Level uses a high-accuracy 3-axis accelerometer to measure tilt and orientation in real time—displaying both front-to-back and side-to-side leveling on a single screen for fast, precise adjustments.

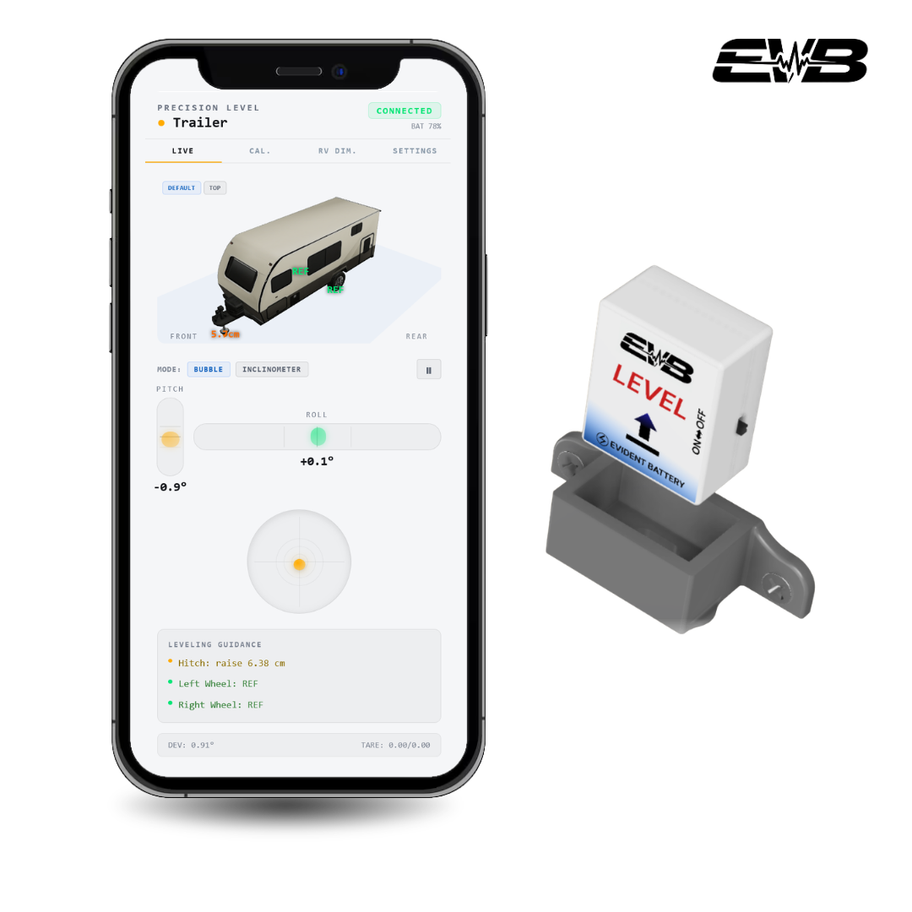

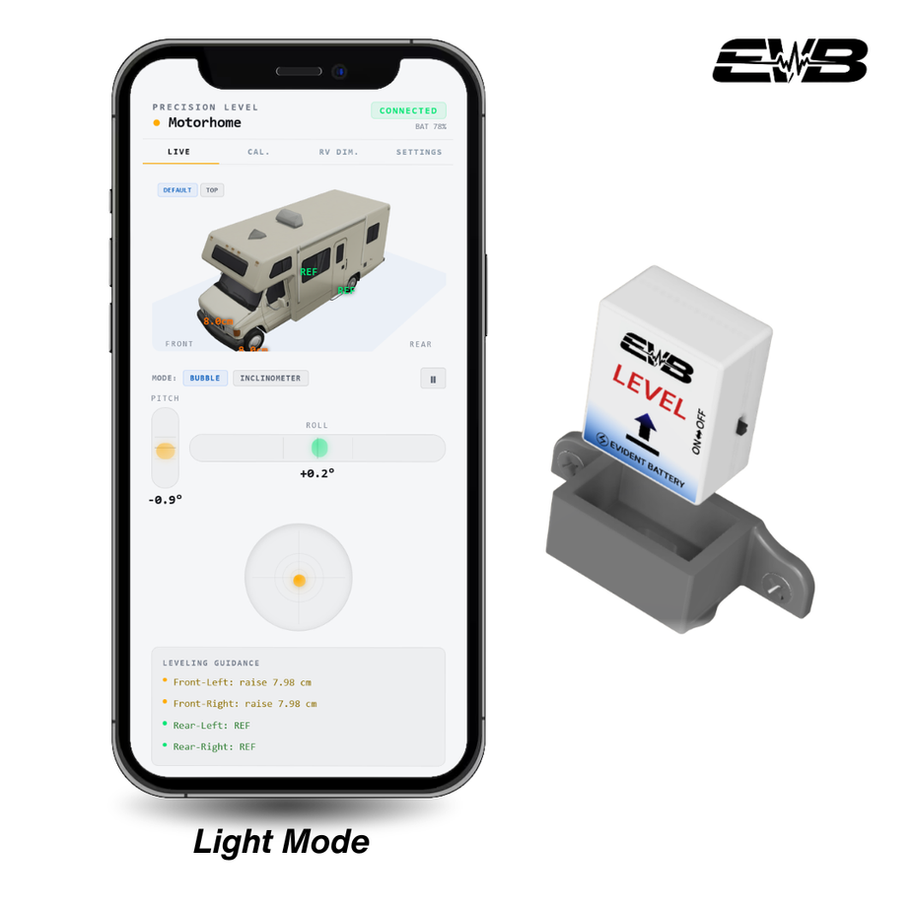

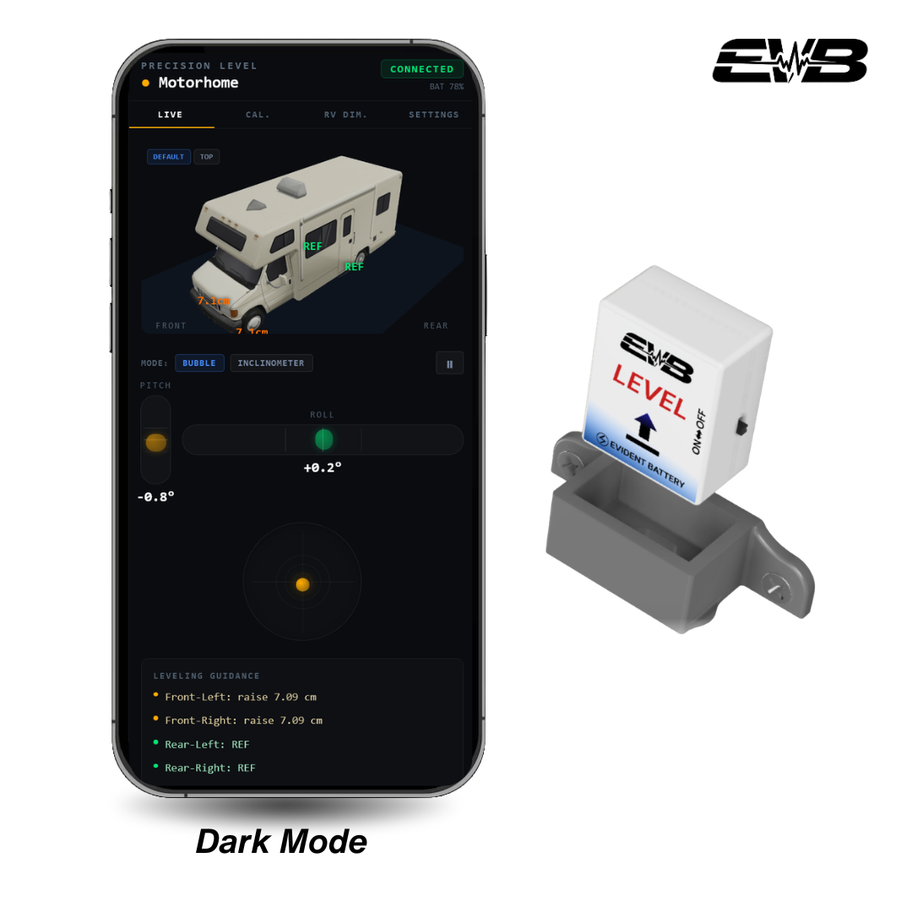

b. REAL-TIME GUIDED LEVELING (NO GUESSWORK)
Get instant feedback on exactly how much adjustment is needed and where. EVB Level removes trial and error, enabling quick, accurate leveling by a single user—even in low-light conditions.

c. SIMPLE ACCESS (NO APP REQUIRED)
Connect directly to the device via AP Mode and view leveling data in your browser—no downloads, no accounts, no unnecessary setup. Works reliably even in remote locations.

d. CLEAR, CONSISTENT READINGS
Delivers stable, easy-to-read tilt measurements so you can confidently level once and move on—no second-guessing or recalculating.

e. COMPACT, PORTABLE, BUILT FOR FIELD USE
  Lightweight design supports continuous operation when connected via USB power for uninterrupted use, while the built-in 500 mAh Li-Po battery delivers up to ~8 hours of runtime on a single charge. A durable photopolymer resin enclosure ensures reliable performance in real-world environments.

Main Specifications

• Measurement Type: Tilt / Level (Pitch & Roll)

• Sensor: 3-axis accelerometer

• Resolution: 0.01°

• Connectivity: AP Mode (direct device connection)

• Interface: Browser-based (no app required)

• Dimensions: 41 × 37 × 19 mm

• Weight: Lightweight compact form

• Power: Continuous when plugged in or using external power.

• Battery: 500 mAh Li-Po (8 hours use on a single charge)

• Charging: USB-C

• Housing: Photopolymer resin enclosure

• Processor: 240 MHz dual-core MCU with onboard flash (16 MB)
